系统数据
频率响应 (–5 dB 标准) ..........................................48 Hz – 18 kHz
频率响应 (–5 dB CUT 模式)............................... 100 Hz – 18 kHz
最大声压级 (1 m, 自由声场)
1
..............................................................
D6/10D 功放驱动 ................................................................130 dB
30D/D20 功放驱动.............................................................. 133 dB
D80 功放驱动 .......................................................................133 dB
输入电平（100 dB SPL/1m）............................................ –14 dBu
音箱数据
额定阻抗..................................................................................8 欧姆
额定功率 (有效值/峰值 10 ms) .................................300/1600 W
标称覆盖角 12S/12S-D (h x v).........................................................
...................................................... 75° x 50°/110° x 55° 可旋转
部件 ...................................................................12” 钕磁钢驱动单元
..........................................................................1.4” 压缩式驱动单元
......................................................................................内置分频网络

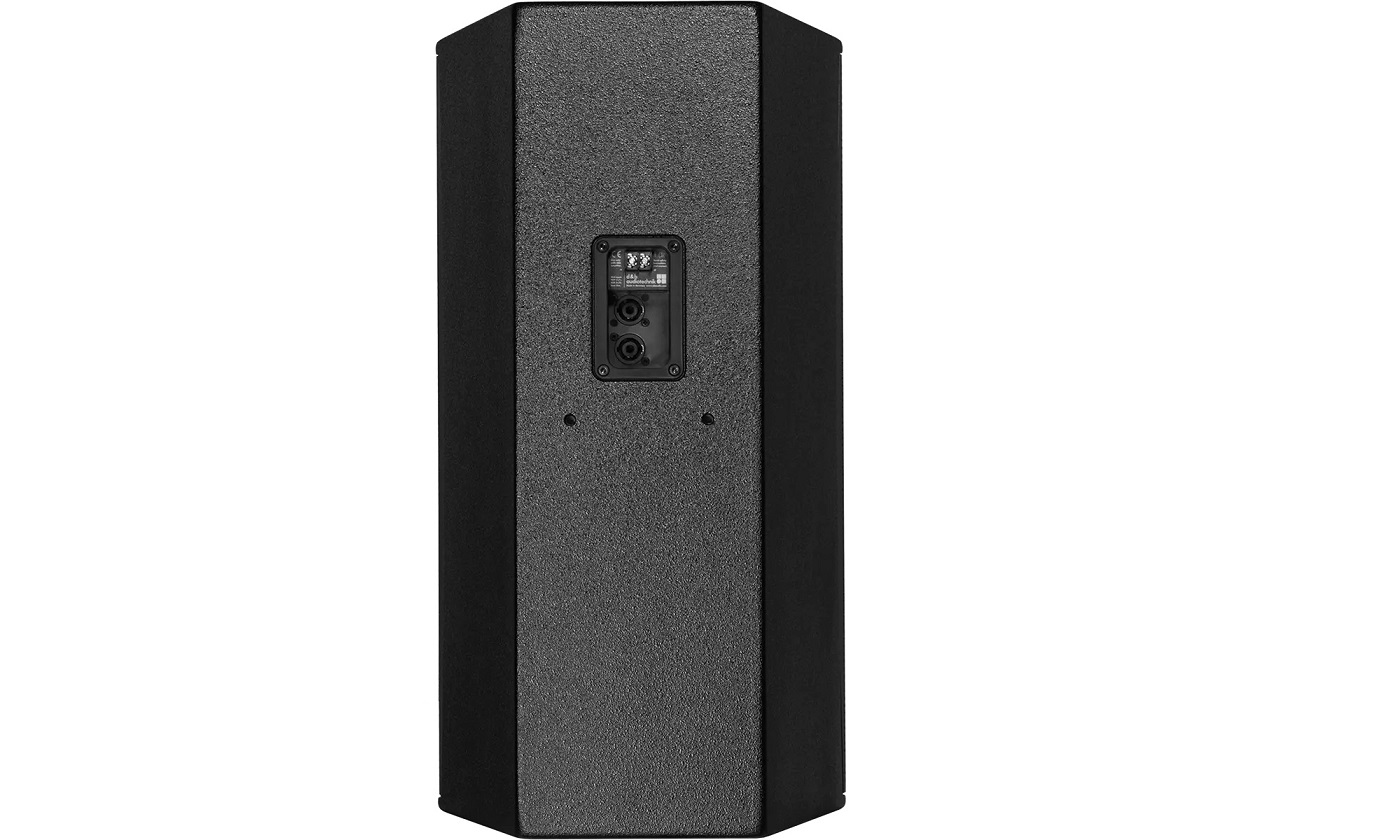

接插件...................................................................................2 x NL4
..........................................................................................螺丝接线盒
重量 .......................................................................17 公斤 ( 37 磅 )
