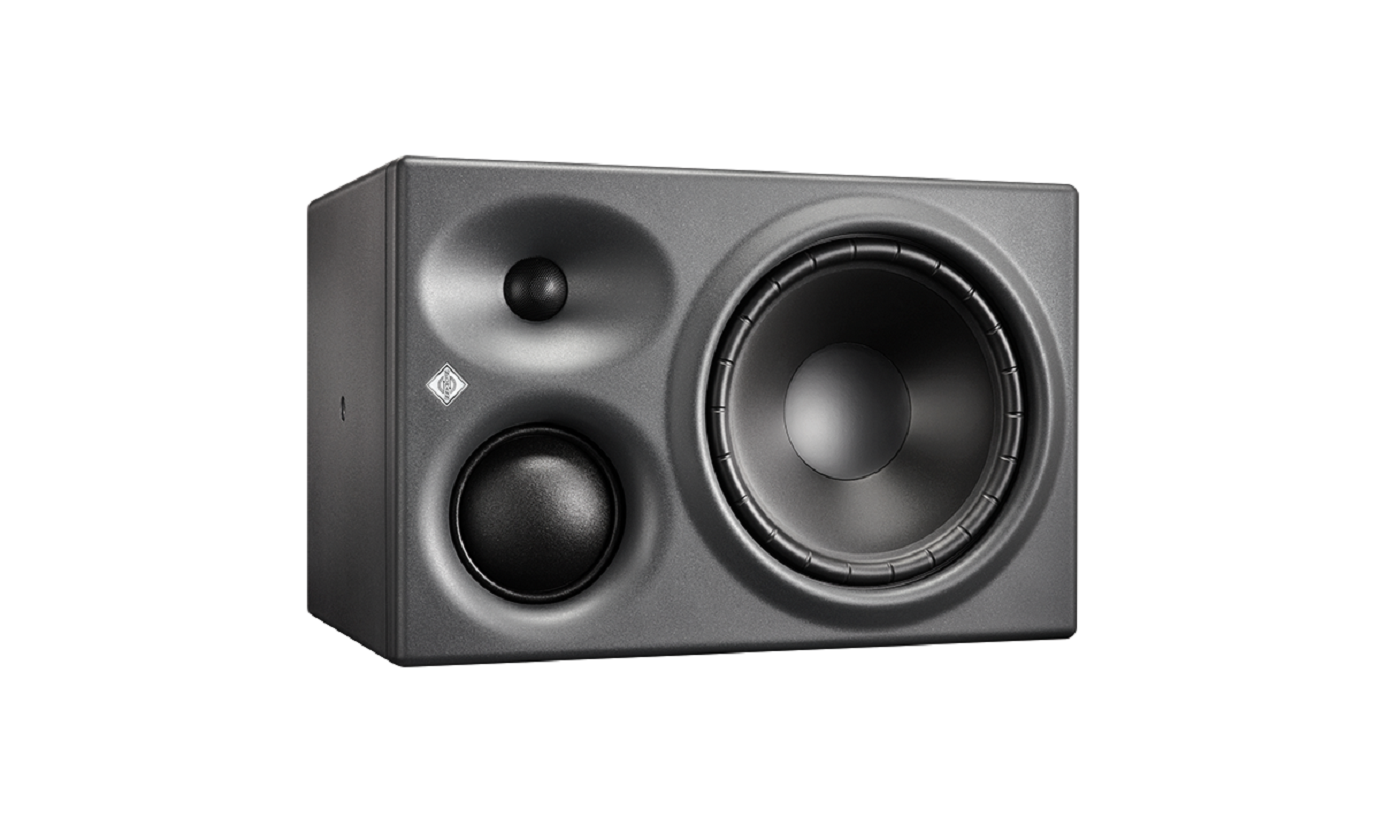

Neumann KH 310 监听音响
KH310A是一款有源近场监听音箱,可满足音乐制作、广报、后阴圳作、混音和母带制作等领域的应用需要。它也非常适合作为中等尺寸环绕声系统中的前置音箱使用,或是作为更大型多声道系统中的后置普抓使用,
音箱驱动单元全部由Neumanm 设计开发,并且经过了声学模拟和一系列测量及测试。长冲程低频驱动单元确保了在高声压退的况下也能您在银低的失工
通过一只专门设计的中频驱动单元,能够满足处于中频范国内语音和人声的精确重放。高频重放通过一只位于销四形
Mathematically Modeled Dispersion"(MMD)彼导管中的软硬复合球顶驱动单元来完成。从而在一个更宽的可用听音区域范围内实现清晰透明的重放效果,并且在垂直面上实现了反射的晨小化。
KH 31OA 采用封闭式音箱箱体,并提供低频、中频以及高级的声学控制手段,使其成为声学受限空间环境中一种有效的解决方案。这些环境包括个人录音棚、后期制作录音掘以及使析维
|
Free field frequency response |
34 Hz … 21 kHz, ± 3 dB |
|
Pass band free field frequency response |
36 Hz … 20 kHz, ± 2 dB |
|
Self-generated noise (with controls set to 100 dB SPL and 0 dB) |
< 20 dB(A) at 10 cm |
|
Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m |
> 85 Hz |
|
Max. SPL in full space / calc. in half space at 3% THD at 1 m |
110.3 / 116.3 dB SPL (averaged 100 Hz ... 6 kHz) |
|
Bass Capability (max. SPL calc. in half space at 3% THD at 1 m) |
104.5 dB SPL (averaged 50 ... 100 Hz) |
|
Max. short term SPL with IEC-weighted noise (IEC 60286-5) at 1 m, in typical listening conditions |
113 dB(C) SPL |
|
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair) |
100 dB(C) SPL (full range) 107 dB(C) SPL (with subwoofer) |
|
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair) |
93 / 99 dB(C) SPL (full range) 94 / 100 dB(C) SPL (with subwoofer) |
ELECTRONICS
|
Bass / Midrange / Treble Class AB amplifiers, cont. (peak) output power* |
150 W (210 W) / 70 W (90 W) / 70 W (90 W) |
|
Controller design |
analog, active |
|
Crossover frequencies |
650 Hz, 2 kHz |
|
Crossover slope |
24 dB/oct., 4th order |
|
Equalization: Bass / Low-Mid / High |
0; ?2.5; ?5; ?7.5 dB / 0; ?1.5; ?3; ?4.5 dB / +1; 0; ?1; ?2 dB |
|
Protection circuitry |
Excursion and Peak Limiter: Low; Thermo Limiter: Low, Mid, High |
|
Infrasonic filter frequency; slope |
15 Hz; 6 dB/oct. |
ANALOG INPUT
|
Impedance, electrically balanced |
XLR, > 13 kHz |
|
Input gain control (sensitivity) at 1 m for a 0 dBu input |
0 dB to ?15 dB |
|
Output level control |
94, 100, 108, 114 dB SPL |
|
CMRR |
> 56 dB @ 100 Hz ... 15 kHz |
DIGITAL INPUT/OUTPUT
|
Format XLR / BNC |
– |
AES3 / AES3 and S/P-DIF |
|
Impedance XLR (balanced) / BNC (unbalanced) |
– |
110 Ω / 75 Ω |
|
Input switching |
– |
Analog, Digital A, Digital B, Digital A+B (all available with and without delay) |
|
Digital converter: resolution, design |
– |
16 … 24-bit DAC, Δ∑ |
|
sampling rate |
– |
32 … 192 kHz |
|
Digital sensitivity / D-A dynamic range |
– |
?18 dBFS / 120 dB |
|
Audio-Video/lip sync and Time-of-Flight delay range |
– |
0 … 409.5 ms |
|
Audio-Video/lip sync max. frames |
– |
0 … 10.2 (40 ms) frames 0 … 12.3 (33 ms) frames |
|
Resolution: time/distance |
– |
0.1 ms / 3.4 cm (1 3/8”) |
|
Latency D-A (A-D-A) |
– |
0.22 - 1.85 ms (0.54 ms) |
DISPLAYS AND MAINS POWER
|
Displays and indicators: power on |
Neumann logo ?White?, dimmable: 100%/60%/30%/0% |
|
|
limit/clip |
Neumann logo ?Red?, dimmable: 100%/60%/30% |
|
|
Mains Power Supply: voltage; frequency |
100 - 240 V~; 50 - 60 Hz |
|
|
Power consumption: Idle / Full output |
24 W / 300 W |
30 W / 300 W |
MECHANICS
|
Height x width x depth, mm (inches) |
253 x 383 x 292 mm (10” x 151/8” x 111/2”) |
|
|
Internal net volume / external volume |
16.2 liters / 28.3 liters |
|
|
Weight |
13.0 kg |
13.1 kg |
|
Drivers, magnetically shielded: Woofer / Midrange / Tweeter |
210 mm (8 1/4”) / 75 mm (3”) / 25 mm (1”) |
|
|
Mounting points |
2 x M8 on side panels, depth from outside of cabinet 25 mm (1”). Rear panel screws for attaching LH 41 base plate. Rear panel brackets. |
|
|
|
|
|
