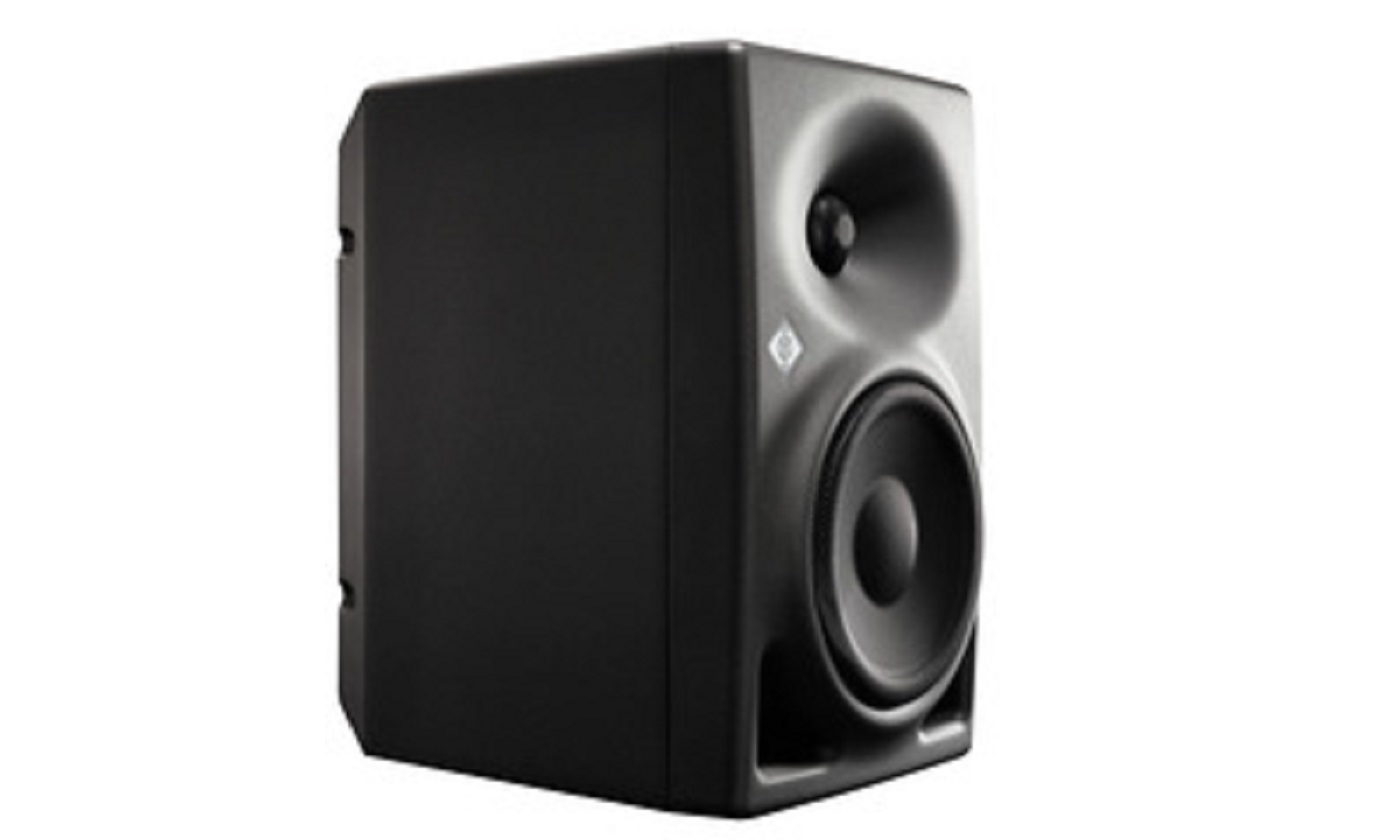

Neumann KH 120 5.5英寸有源监音响

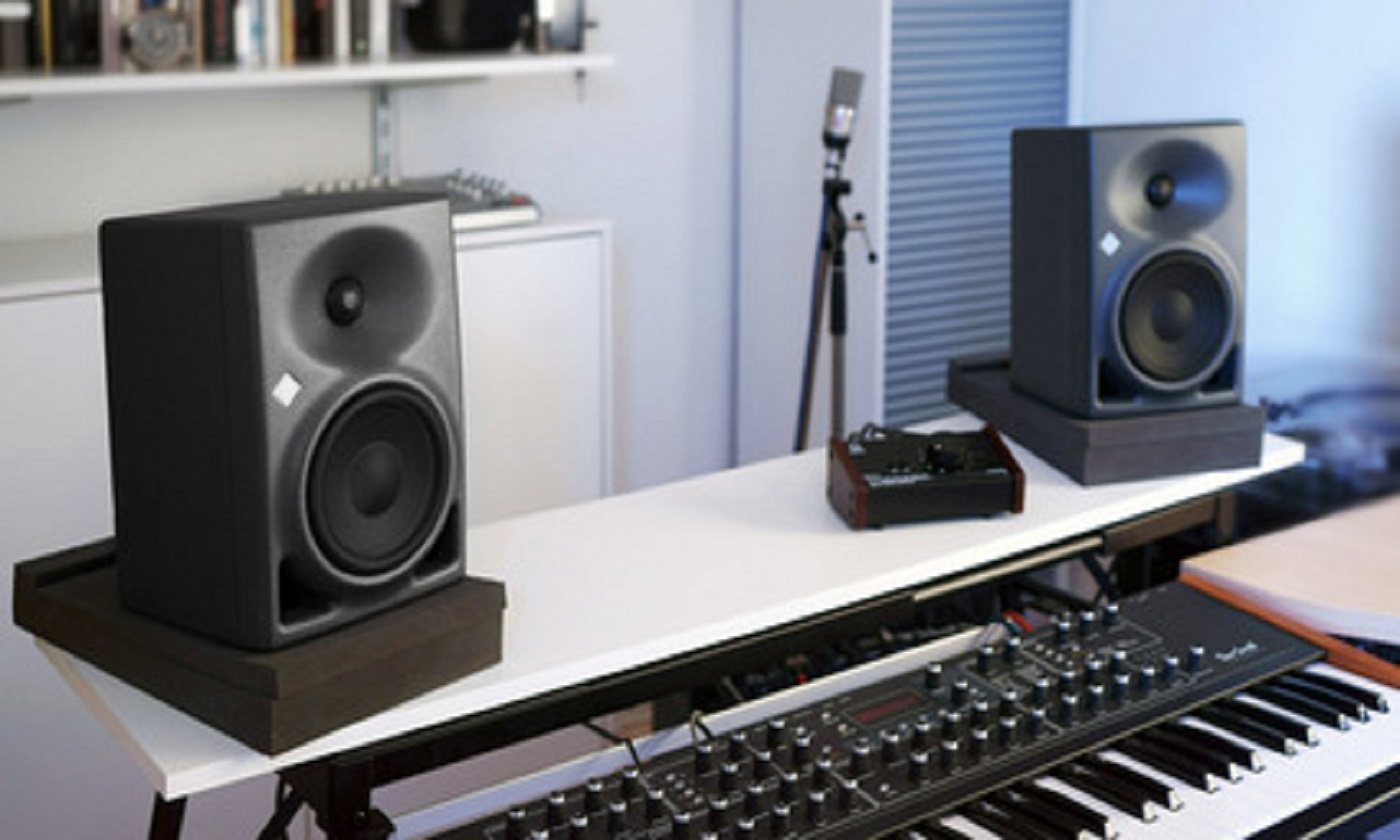

KH120有源监听音箱可作为近场监听音箱使用,或者在大型环绕声监听环境中担任环绕音箱的角色。由于在设计和制造过程中采用了最新的电声仿真及测量技术, KH120在最大程度上保证了精确的声音还原。KH120的高频波导采用了"数字建模辐射"Mathematically Modeled DispersionW(MMDM）技术,具有灵活的声音
控制手段,装备模拟电路的甲乙类放大器,能支持不同格式的输入,并可以选择多种安装附件。所有这些,都给用户在不同声学条件,播放设备,以及安装位置下使用监听音箱提供了最大的灵活性
如果需要扩展低频下限、提升系统的最大输出声压级, 还可以选用能支持7.1回放,带有高解析度低音管理系统的Neumann KH810次低音音箱,低频响应可以达到18Hz。KH120是音乐、广播、工程、以及后期制作领域中,应用在录音、缩混、母带制作等各个环节的完美选择。
|
?3 dB free field frequency response |
52 Hz … 21 kHz, ± 3 dB |
|
Pass band free field frequency response |
54 Hz … 20 kHz, ± 2 dB |
|
Self-generated noise (with controls set to 100 dB SPL and 0 dB) |
< 20 dB(A) at 10 cm |
|
Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m |
> 100 Hz |
|
Max. SPL in full space / calc. in half space at 3% THD at 1 m |
105.1 / 111.1 dB SPL (averaged 100 Hz ... 6 kHz) |
|
Bass Capability (max. SPL calc. in half space at 3% THD at 1 m) |
104.8 dB SPL (averaged 50 ... 100 Hz) |
|
Max. short term SPL with IEC-weighted noise (IEC 60286-5) at 1 m, in typical listening conditions |
107 dB(C) SPL |
|
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair) |
97 dB(C) SPL (full range) 104 dB(C) SPL (with subwoofer) |
|
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair) |
88 / 93 dB(C) SPL (full range) 89 / 94 dB(C) SPL (with subwoofer) |
ELECTRONICS
|
Woofer/Tweeter amplifier, cont. (peak) output power* |
50 W (80 W) / 50 W (80 W) |
|
Controller design |
analog, active |
|
Crossover frequency |
2.0 kHz |
|
Crossover slope |
24 dB/oct., 4th order |
|
Equalization: Bass / Low-Mid / High |
0, ?2.5, ?5, ?7.5 dB / 0, ?1.5, ?3, ?4.5 dB / +1, 0, ?1, ?2 dB |
|
Protection circuitry |
Peak Limiter: Low; Thermo Limiter: Low, High |
|
Infrasonic filter frequency; slope |
30 Hz; 6 dB/oct. |
ANALOG INPUT
|
Impedance, electrically balanced |
XLR, > 10 kΩ |
|
Input gain control (sensitivity) |
0 dB to ?15 dB |
|
Output level control |
94, 100, 108, 114 dB SPL |
|
CMRR |
> 56 dB @ 15 kHz |
DIGITAL INPUT/OUTPUT
|
Format BNC |
– |
AES3, S/P-DIF |
|
Impedance BNC, unbalanced |
– |
75 Ω (input/output) |
|
Input switching |
– |
Analog, Digital A, Digital B, Digital A+B (all available with and without delay) |
|
Digital converter: resolution, design |
– |
16 … 24-bit DAC, Δ∑ |
|
sampling rate |
– |
32 … 192 kHz |
|
Digital sensitivity |
– |
?18 dBFS |
|
D-A dynamic range |
– |
120 dB |
|
Audio-Video/lip sync and Time-of-Flight delay range |
– |
0 … 400 ms |
|
Audio-Video/lip sync max. frames |
– |
0 … 10 (40 ms) frames 0 … 12 (33 ms) frames |
|
Resolution: time/distance |
– |
0.1 ms / 3.4 cm (1 3/8”) |
|
Latency D-A (A-D-A) |
– |
0.22 - 1.85 ms (0.54 ms) |
DISPLAYS AND MAINS POWER
|
Displays and indicators: power on |
Neumann logo ?White?, dimmable: 100%/60%/30%/0% |
|
|
limit/clip |
Neumann logo ?Red? , dimmable: 100%/60%/30% |
|
|
digital delay setting acknowledgement |
– |
Neumann logo ?Red? 3 flashes |
|
digital error |
– |
Neumann logo ?Red? flash |
|
Mains Power Supply: voltage; frequency |
100 - 240 V~; 50 - 60 Hz |
|
|
Power consumption: Idle / Full output |
20 W / 200 W |
40 W / 200 W |
MECHANICS
|
Height x width x depth, mm (inches) |
277 x 182 x 220 mm (107/8” x 71/8” x 85/8”) |
|
|
Internal net volume / external volume |
6.5 Liter / 9.7 Liter |
|
|
Weight |
6.4 kg (14 lbs 2 oz) |
6.5 kg (14.3 lbs) |
|
Drivers: Woofer / Tweeter |
130 mm (5.25”) / 25 mm (1”), both magnetically shielded |
|
|

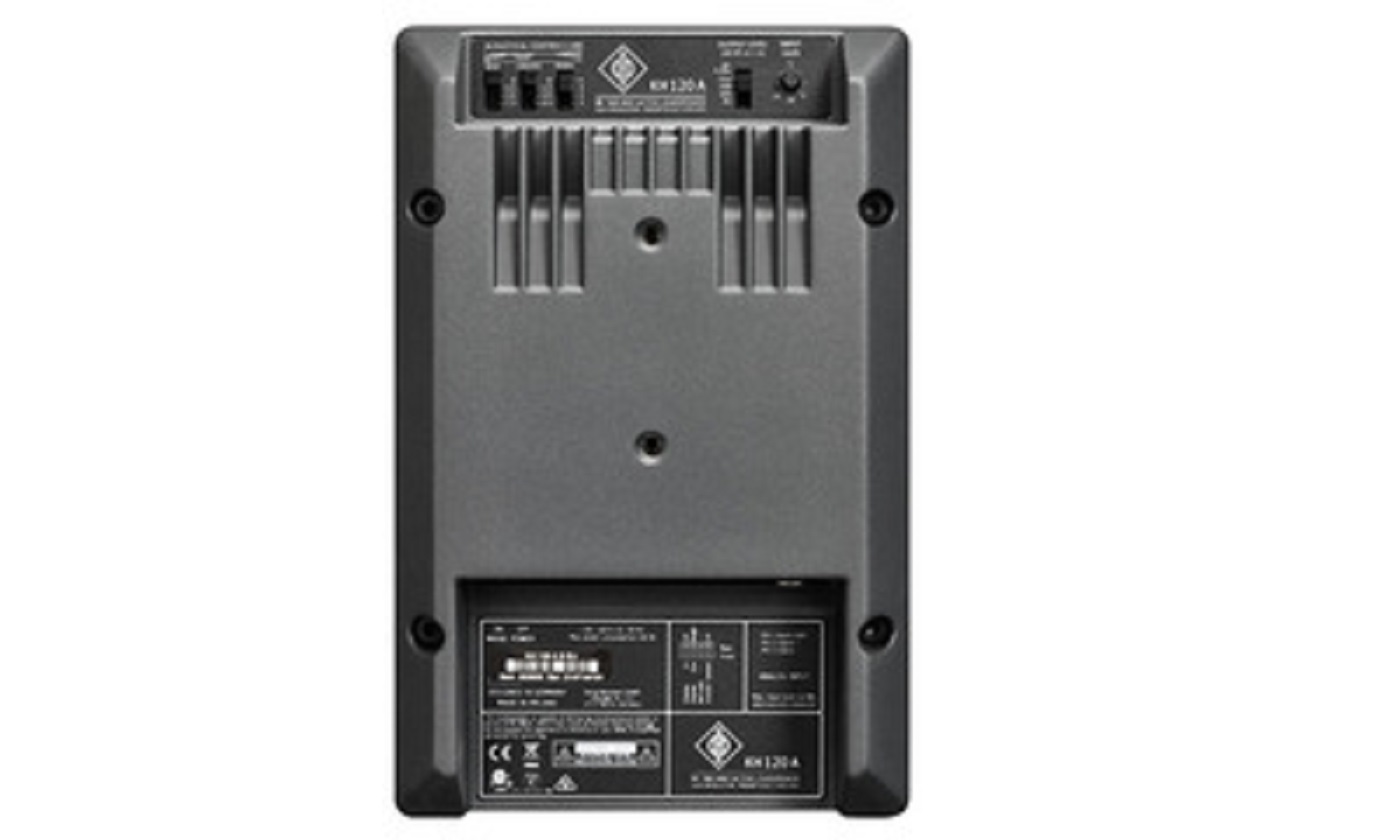

Mounting points |
2 x M8 on rear panel |
|
|
|
|
|
